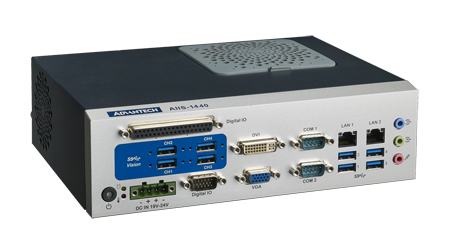

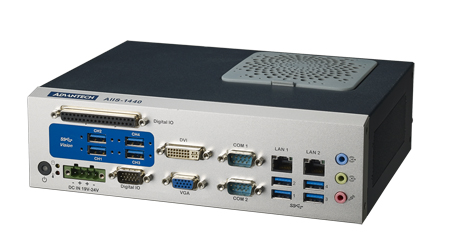

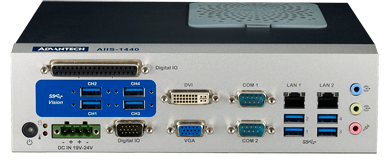

| AIIS-1440 |
| USB3 CAM Control System, Supports Intel? Core? i7/i5/i3 CPU, 4-CH dedicated USB3 controller |
| AIIS-1440-00A1E |
| Processor System |
CPU |
Intel Core i3/i5/i7 |
| Core Number |
2002/4/4 |
| Frequency |
Up to 3.4 GHz |
| L3 Cache |
3 / 6 / 8 MB |
| Chipset |
Intel H61 |
| BIOS |
AMI 64 Mb SPI Flash |
| Memory |
Technology |
Dual Channel DDR3 1066/1333 MHz (Non ECC) |
| Max. Capacity |
16 GB (8 GB per DIMM) |
| Socket |
2 x 204-pin DDR3 SO-DIMM |
| Graphics |
Chipset Integrated |
Integrated Intel HD Graphics |
| Ethernet |
Controller |
LAN1: Intel 82579V LAN2: Intel 82583V |
| Storage |
HDD |
1 x internal 2.5" HDD Bay |
| CFast |
1 |
| FrontI/O erface |
USB3.0 |
4 |
| Rear I/O Interface |
USB2.0 |
4 |
| WatchDog Timer |
Output |
System Reset |
| Interval |
Programmable 1 ~ 255 sec/min |
| Cooling |
System Fan |
1 (6cm / 27.7 CFM) |
| Miscellaneous |
LED Indicators |
Power, HDD, temperature |
| Control |
Power on/off switch |
| Environment |
Operational Temperature |
0 ~ 45° C |
| Operating Vibration |
1Grms, random, 5~500Hz, 3 axes, 1 hr/axis |
| Operating Shock |
10G, half sine wave, 11 ms duration |
| Physical Characteristics |
Dimensions (W x H x D) |
232 x 70 x 175 mm (9.06" x 2.76" x 6.89") |
| Weight |
2.5 kg |
|
