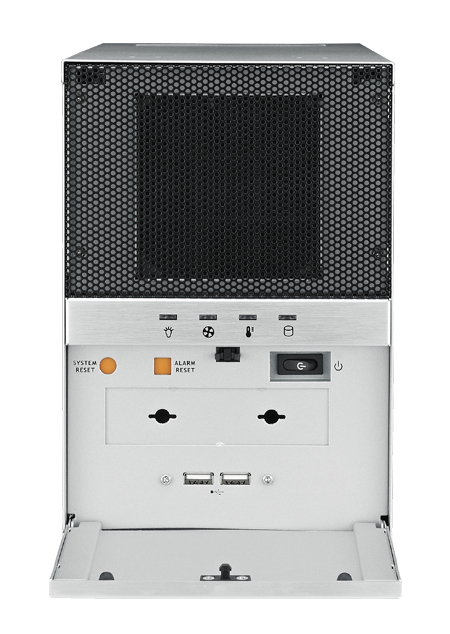

| AiMC-3420 |
| Intel? Core? i7/i5/i3 CPU, 3個擴展插槽, 300W 80Plus PSU |
|
|
Main Features
- Intel® 3rd/2nd gen Core™ i7/i5/i3 CPU (LGA1155)
- 1個PCIe x16 & 2個PCIe x1 擴展插槽
- 1個內部的3.5“SATA防震硬盤托架
- 可選的前面板抽取式2.5“硬盤托架
- 300W 80Plus PSU
 數據表(PDF)  技術資料下載
|
|
|
AIMC-3420-00A1E
|
|
Form Factor
|
Form Factor
|
Wallmount
|
|
Processor System
|
CPU
|
Intel Core i3/i5/i7 (LGA1155 socket)
|
|
CPU TDP
|
Up to 95 W
|
|
Frequency
|
Up to 3.4 GHz
|
|
Core Number
|
4
|
|
L3 Cache
|
8 MB
|
|
BIOS
|
AMI SPI 64 Mbit
|
|
Chipset
|
Intel H61
|
|
Integrated Graphics
|
Yes
|
|
Memory
|
Technology
|
DDR3 1066/1333 MHz
|
|
Capacity
|
Up to 16 GB (8 GB per DIMM)
|
|
ECC Support
|
-
|
|
Socket
|
2 x 204-pin SODIMM
|
|
Display
|
Controller
|
Intel HD graphics Integrated
|
|
Graphic Memory
|
-
|
|
Multiple Display
|
Dual
|
|
Expansion Interface
|
PCI Express x 16
|
1
|
|
PCI Express x 4
|
-
|
|
PCI Express x 1
|
2
|
|
Mini PCIe
|
-
|
|
Ethernet
|
Controller
|
LAN1: Intel 82579V LAN2: Intel 82583V
|
|
Speed
|
10/100/1000 Mbps
|
|
Connector
|
2 x RJ45
|
|
WatchDog Timer
|
Output
|
System Reset
|
|
Interval
|
Programmable 1~255 sec
|
|
Storage
|
CFast
|
-
|
|
Front I/O Interface
|
Display
|
-
|
|
LAN
|
-
|
|
USB3.0
|
-
|
|
USB2.0
|
2
|
|
COM
|
-
|
|
PS/2
|
-
|
|
Audio
|
-
|
|
Rear I/O Interface
|
Display
|
1
|
|
LAN
|
2
|
|
USB2.0
|
5
|
|
COM
|
2 (RS232)
|
|
PS/2
|
1 (1 x Keyboard or 1 x Mouse)
|
|
DVI
|
1
|
|
Ethernet
|
2
|
|
VGA
|
1
|
|
Power Supply
|
Power Type
|
ATX
|
|
Output Wattage
|
300W
|
|
Input Range
|
AC 100 V ~ 240 V
|
|
Cooling
|
System Fan
|
1 (9cm / 53 CFM)
|
|
Air Filter
|
Yes
|
|
Environment
|
Operational Temperature
|
0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 85% RH Non-Condensing)
|
|
Non-Operational Temperature
|
-20 ~ 60° C (-4 ~ 140° F) and 40° C @ 95% RH Non-Condensing
|
|
Operating Vibration
|
1 Grms
|
|
Non-Operating Vibration
|
2 Grms
|
|
Operating Shock
|
10 G
|
|
Physical Characteristics
|
Dimensions (W x H x D)
|
150 x 222 x 270 mm (5.9 x 8.7 x 10.6)
|
|
Weight
|
5 kg (11.0 lb)
|
|
Certification
|
EMC
|
CE/FCC Class A, CCC, BSMI
|
|
Safety Certifications
|
UL, CB, CCC, BSMI
|
|
Disk Drive Bay
|
3.5" Internal
|
1
|
|
2.5" Internal
|
-
|
|
Miscellaneous
|
LED Indicators
|
Power, HDD, temperature
|
|
Control
|
Power Switch
|
|
Management Solution
|
Software
|
SUSIAccess
|
|
Processor
|
CPU
|
|
|
Chipset
|
Intel H61
|
|
Memory
|
Max. Capacity
|
8 GB
|
|
Expansion
|
PCIe x 16
|
1
|
|
PCIe x 1
|
2
|
|
Network
|
LAN
|
2 GbE
|
|
I/O
|
USB
|
8 (2.0)
|
|
COM
|
2 x RS-232
|
|
PS/2 KB/Mouse
|
1
|
|
