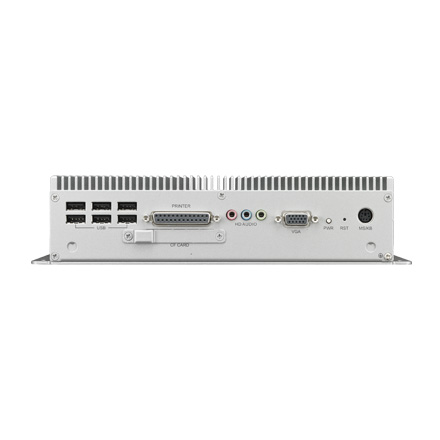

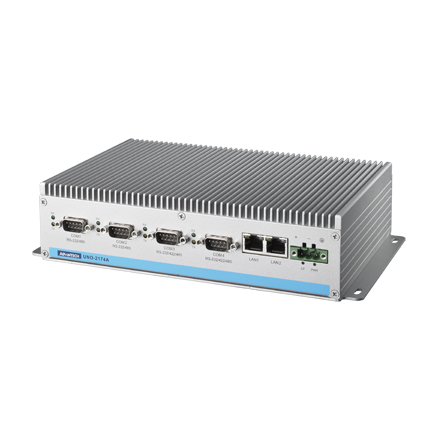

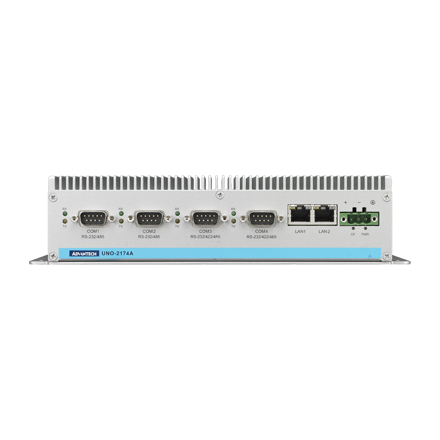

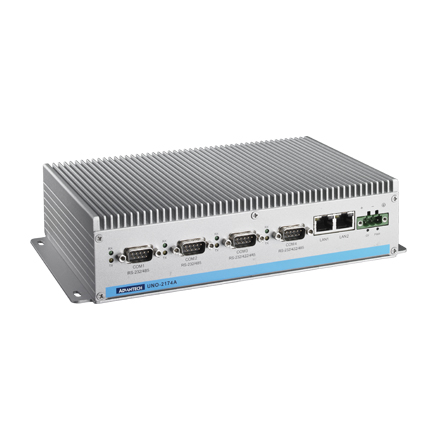

UNO-2174A-A33E |
| General |
Mounting |
DIN-rail, Wallmount, VESA |
DIN-rail, Wallmount, VESA |
| Power Consumption |
12 W |
12 W |
| Certifications |
Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI |
Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI |
| Weight |
2.5 kg |
2.5 kg |
| Dimensions |
255 x 152 x 50 mm(10" x 6.0" x 2.0") |
255 x 152 x 59 mm (10" x 6.0" x 2.3") |
| Enclosure |
Aluminum +SECC |
Aluminum +SECC |
| OS Support |
Windows XP/7, WES7, WES-2009, CE 6.0, Linux, QNX |
Windows XP/7, WES7, WES-2009, CE 6.0, Linux, QNX |
| Power Requirement |
9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX |
9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX |
| System Design |
Fanless design with no internal cabling |
Fanless design with no internal cabling |
| Remote Management |
Built-in Advantech DiagAnywhere agent on Windows CE, WES2009, WES7 |
Built-in Advantech DiagAnywhere agent on Windows CE, WES2009, WES7 |
| System Hardware |
CPU |
Intel Atom N450 1.6 GHz |
Intel Atom D510 1.66 GHz |
| Memory |
2 GB DDR2 SDRAM built-in |
2 GB DDR2 SDRAM built-in |
| Storage |
CF: 1 x front-accessilbe type I/II CompactFlash® slot HDD: Build-in one 2.5" SATA HDD bracket |
CF: 1 x front-accessilbe type I/II CompactFlash® slot HDD: Build-in one 2.5" SATA HDD bracket |
| Keyboard/Mouse Ports |
1 x PS/2 |
1 x PS/2 |
| Audio |
Line in, Line out, Mic in (5.1 channel HD audio) |
Line in, Line out, Mic in (5.1 channel HD audio) |
| Display |
DB15 VGA connector, UNO-2174A supports up to 1400 x 1050, UNO-2178A supports up to 2048 x 1536 |
DB15 VGA connector, UNO-2174A supports up to 1400 x 1050, UNO-2178A supports up to 2048 x 1536 |
| Indicators |
LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx) |
LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx) |
| Mini PCIe Expansion |
2 x Mini PCIe slots with 1 x SIM card |
2 x Mini PCIe slots with 1 x SIM card |
| I/O Interface |
Serial Ports |
2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO |
2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO |
| LAN |
2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS) |
2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS) |
| USB |
6 x USB 2.0 |
6 x USB 2.0 |
| Environment |
Humidity |
95% @ 40°C (non-condensing) |
95% @ 40°C (non-condensing) |
| Humidity (Operating) |
95% @ 40° C (non-condensing) |
95% @ 40° C (non-condensing) |
| Ingress Protection |
IP40 |
IP40 |
