ACP-1010

1U 上架式機(jī)箱，用于全長(zhǎng)卡或 ATX/ MicroATX 母板，配有雙SAS/ SATA硬盤(pán)托架

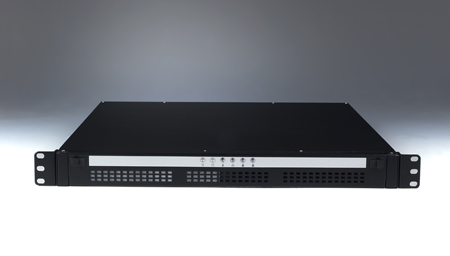

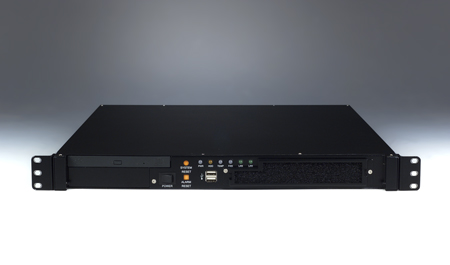

Space-saving 1U rackmount chassis, ideal building block for business expansion
Supports full-size SHB/SBC or ATX/MicroATX motherboards
LED indicators for LAN connectivity, alarm notification of power supply, HDD activity, system fan, and in-chassis temperature
supports a slim ODD and two disk drives
Supports up to 2 expansion slots in BP version, and 1 expansion slot via riser card in MB version
Supports both 250 W/300 W ATX/PFC power supply
Efficient cooling design prevents the system from over-heating

規(guī)格表

		ACP-1010BP-00BE	ACP-1010MB-00BE
Disk Drive Bay	Slim ODD	1	1
Disk Drive Bay	3.5" Front-Accessible	1	1
Cooling	System Fan	4 (4 cm/24 CFM x 3 + 15 CFM x 1)	2 (4 cm/24 CFM each)
Front I/O Interface	USB2.0	2	2
Miscellaneous	LED Indicators	Power, HDD, temperature, fan, LAN1, and LAN2	Power, HDD, temperature, fan, LAN1, and LAN2
	Control	Power / System reset / Alarm reset switch	Power / System reset / Alarm reset switch

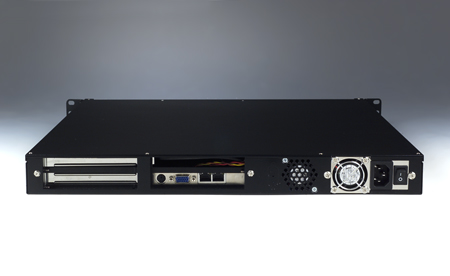

	Rear Panel	One 9-pin D-Sub opening	One 9-pin D-Sub opening
Environment	Non-Operating Humidity	10 ~ 95% @ 40° C, non-condensing	10 ~ 95% @ 40° C, non-condensing
	Operational Temperature	0 ~ 40° C (32 ~ 104° F)	0 ~ 40° C (32 ~ 104° F)
	Non-Operational Temperature	-20 ~ 60° C (-4 ~ 140° F)	-20 ~ 60° C (-4 ~ 140° F)
	Operating Humidity	10 ~ 85% @ 40° C, non-condensing	10 ~ 85% @ 40° C, non-condensing
	Operating Vibration	0.5 Grms	0.5 Grms
	Non-Operating Vibration	2 Grms	-
	Operating Shock	10 G (with 11 ms duration, half sine wave)	10 G (with 11 ms duration, half sine wave)
	Non-Operating Shock	30 G	30 G
Physical Characteristics	Dimensions (W x H x D)	480 x 44 x 497 mm (19" x 1.7" x 19.6")	480 x 44 x 497 mm (19" x 1.7" x 19.6")
Physical Characteristics	Weight	8 kg (17.6 lb)	8 kg (17.6 lb)
