| HPC-7242MB-00XE |

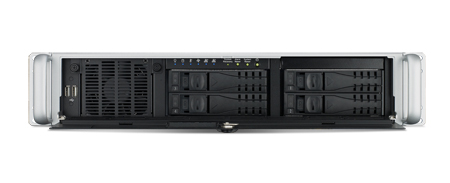

| Disk Drive Bay |
2.5" Internal |
1 |
| Slim ODD |
1 |

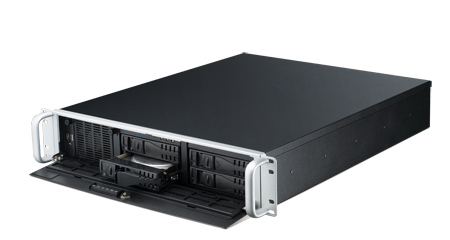

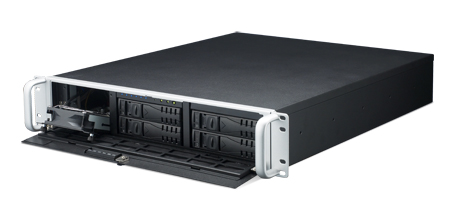

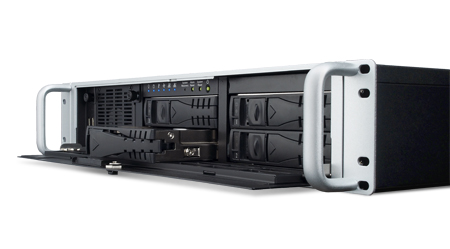

| Hots-swap External |
4 (compatible with 3.5" or 2.5" devices) |
| Cooling |
System Fan |
1 (8 cm/47 CFM) + 2 (6 cm/28 CFM) for SAS/SATA storage unit |
| Air Filter |
Yes |
| Front I/O Interface |
USB3.0 |
2 |
| Miscellaneous |
LED Indicators |
Power, HDD, temperature, fan |

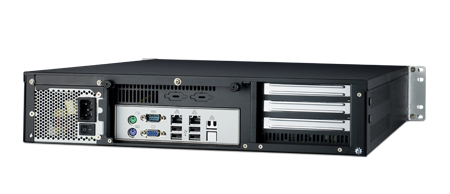

| Rear Panel |
Two 9-pin D-Sub openings |
| Intelligent System Module |
Remote Monitoring |
CPU/System fan speed , CPU/System temperature , motherboard voltage |
| Environment |
Operational Temperature |
0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature |
-40 ~ 70° C (-40 ~ 156° F) |
| Humidity |
10 ~ 95% @ 40° C, non-condensing |
| Non-Operating Humidity |
10 ~ 95% @ 60° C, non-condensing |
| Operating Vibration |
1 Grms |
| Non-Operating Vibration (5 ~ 500 Hz) |
2 G |
| Operating Shock |
10 G (with 11 ms duration, half sine wave) |
| Physical Characteristics |
Dimensions (W x H x D) |
482 x 88 x 525 mm (19" x 3.46" x 20.67") |
| Weight |
13.7 kg (30.12 lb) |
