首頁 》 研華產品 》智能系統 》工業電腦機箱 》Mini-ITX 母板機箱 》ARK-6610

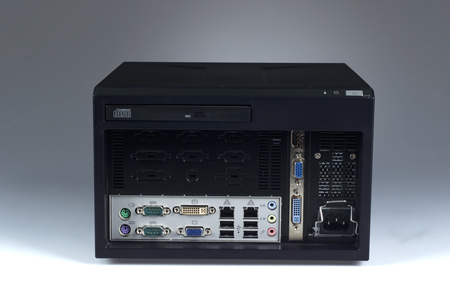

ARK-6610
Compact Chassis for Mini-ITX Motherboard
Main Features
  • ARK-6610 with one front I/O expansion slot
  • Various cut-outs for COM/DVI/LVDS,USB,S/C-video

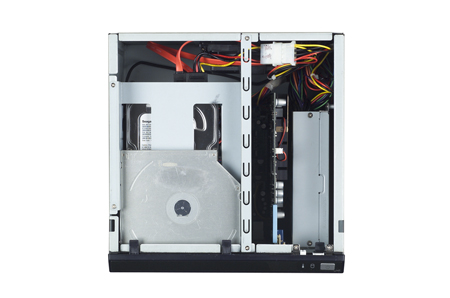

  • Shockproof drive bay for slim ODD and 3.5'' HDD
  • Bottom door to access CF card or Mini-PCIe card
  • Optional equipped FLEX power supply
     數據表(PDF)
  規格表
　
ARK-6610-00XBE
ARK-6610-18ZBE
Disk Drive Bay Slim ODD 1 1
3.5" Internal 1 1
Front I/O Interface COM 5 5
USB 2 2
Cooling System Fan 1 (9 cm/ 52.5 CFM) 1 (9 cm/ 52.5 CFM)
Air Filter Yes Yes
Miscellaneous LED Indicators Power, HDD, temperature Power, HDD, temperature
Control Power Switch Power Switch
Environment Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F) -20 ~ 60° C (-4 ~ 140° F)
Operational Temperature 0 ~ 40° C (32 ~ 104° F) 0 ~ 40° C (32 ~ 104° F)
Physical Characteristics Dimensions (W x H x D) 250 x 156 x 253 mm (9.8'' x 6.1'' x 10'') 250 x 156 x 253 mm (9.8'' x 6.1'' x 10'')
Weight 4.76 kg (10.47 lb) 4.76 kg (10.47 lb)
