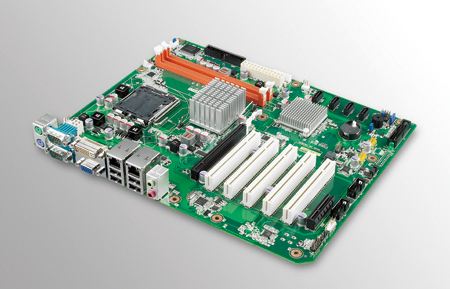

| AIMB-767 |
| LGA775 Intel? 酷睿2 四核ATX 母板,支持雙VGA/DVI顯示, 4 COM, 雙LAN |
| AIMB-767G2-00A2E |
| Form Factor |
Form Factor |
ATX |
| Processor System |
CPU |
Intel Core 2 Quad |
| Frequency |
Up to 3.16 GHz |
| L2 Cache |
12 MB/6 MB/8 MB/512 KB |
| L3 Cache |
- |
| BIOS |
AMI 16 Mbit SPI |
| Chipset |
Intel G41 + ICH7 |
| Integrated Graphics |
Yes |
| FSB |
800/1066/1333 MHz |
| Memory |
Technology |
DDR3 800/1066 MHz |
| Capacity |
Up to 4GB (2 GB per DIMM) |
| ECC Support |
- |
| Socket |
2 x 240-pin UDIMM |
| Display |
Controller |
Intel GMA X4500 Integrated |
| Graphic Memory |
Share with system memory up to 352 MB |
| Multiple Display |
- |
| Display Interface |
VGA: Up to 2048 x 1536 DVI-D: Up to 1920 x 2000 |
| Expansion Interface |
PCI Express x 16 |
1 |
| PCI Express x 4 |
1 |
| PCI Express x 1 |
- |
| PCI |
5 |
| LPC |
1 |
| Ethernet |
Controller |
LAN1: Intel 82583V LAN2: Intel 82583V |
| Speed |
10/100/1000 Base-T |
| Connector |
2 x RJ45 |
| WatchDog Timer |
Output |
System Reset |
| Interval |
Programmable 1~255 sec |
| I/O |
SATA |
4 x SATA II (RAID 0, 1, 5, 10) |
| USB3.0 |
- |
| USB2.0 |
8 |
| GPIO |
- |
| LPT |
1 |
| COM Port |
2 (1 x RS232, 1 x RS232/422/485) |
| PS/2 Keyboard/Mouse |
1 |
| SPDIF |
- |
| System Fan |
2 |
| Rear I/O Interface |
Display |
2 |
| USB3.0 |
- |
| USB2.0 |
4 |
| COM |
2 (2 x RS232) |
| PS/2 |
2(1 x keyboard and 1 x mouse) |
| Audio |
2 (Mic-in, Line-out) |
| LPT |
- |
| DVI |
1 |
| Ethernet |
2 |
| VGA |
1 |
| Physical Characteristics |
Dimensions (LxW) |
304.8 x 244 mm (12" x 9.6") |
| Certification |
EMC |
CE, FCC |
| Management Solution |
Software |
SUSIAccess |
|
