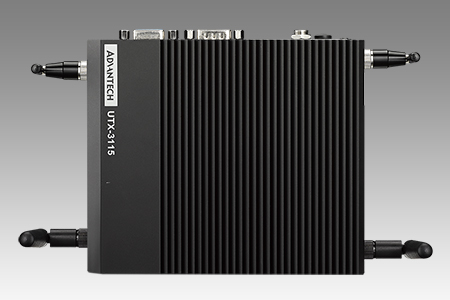

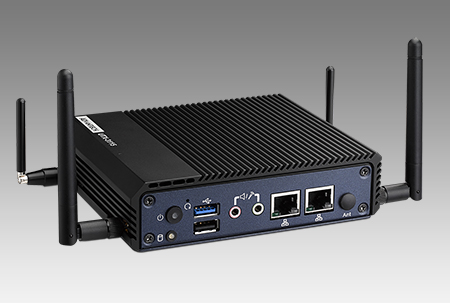

UTX-3115

Intel? Atom? E3826/E3815 with Dual Giga LAN Fanless Compact Box PC

Main Features

Intel® Atom™ Dual Core E3826 & E3815 processor
Palm-size form factor: 138.5(W) x 35.98(H) x 116.4(D) mm
Supports 1 x COM port, 1 x HDMI, 1 x micro HDMI, 1 x USB3.0 and 2 x USB 2.0 ports
Built-in 1 x Half size Mini PCIe expansion slot (i.e.: Wi-Fi module) and 1 x Full size Mini PCIe expansion slot for mSATA storage
Supports 1 2.5" HDD or SSD storage
Wide operating temperature -20 ~ 60° C support
Optional VESA / DIN-Rail / Wall mounts
Bundled with the Intel® Gateway Solutions for Internet of Things (IoT)
數(shù)據(jù)表(PDF) 技術(shù)資料下載

規(guī)格表

		UTX-3115B-S6A1E	UTX-3115SA4P-S6A1E	UTX-3115SA4-S6A1E
Processor	CPU	Intel ATOM E3826	Intel ATOM E3826	Intel ATOM E3826
Display	VGA	Up to 2560 x 1600	Up to 2560 x 1600	Up to 2560 x 1600
Display	Multiple Display	Dual	Dual	Dual
Ethernet	Controller	GbE1: Intel I210AT; GbE2:Realtek 8111G	GbE1: Intel I210AT; GbE2:Realtek 8111G	GbE1: Intel I210AT; GbE2:Realtek 8111G
Audio	CODEC	Realtek ALC892, High Definition Audio (HD)	Realtek ALC892, High Definition Audio (HD)	Realtek ALC892, High Definition Audio (HD)
I/O	COM Port	1x RS-232 & 1x RS-422/485	1x RS-232 & 1x RS-422/485	1x RS-232 & 1x RS-422/485
Display	LCD (TTL/LVDS/eDP)	N/A	N/A	N/A
Display	DDI (HDMI/DVI/DisplayPort)	HDMI: 1920X1080P & Micro HDMI: 1920X1080P	HDMI: 1920X1080P & Micro HDMI: 1920X1080P	HDMI: 1920X1080P & Micro HDMI: 1920X1080P
Expansion	Slots	1 F/S miniPCIE & 1H/S miniPCIE	1 F/S miniPCIE & 1H/S miniPCIE	1 F/S miniPCIE & 1H/S miniPCIE
