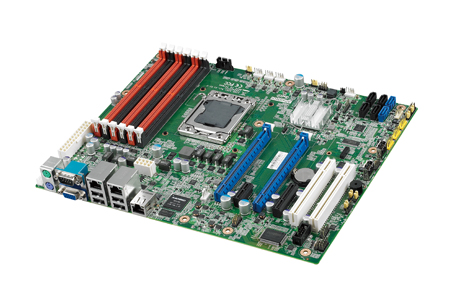

ASMB-820-00A1E |
ASMB-820I-00A1E |
| Form Factor |
Form Factor |
ATX |
ATX |
| Processor System |
CPU |
Intel Xeon E5-2400 series (LGA1356 socket) |
Intel Xeon E5-2400 series (LGA1356 socket) |
| CPU TDP |
Up to 95 W |
Up to 95 W |
| Frequency |
Up to 2.4 GHz |
Up to 2.4 GHz |
| Core Number |
4/6/8 |
4/6/8 |
| L3 Cache |
20MB |
20MB |
| BIOS |
AMI EFI 64 Mbit |
AMI EFI 64 Mbit |
| Chipset |
Intel C602J |
Intel C602J |
| Integrated Graphics |
- |
- |
| DMI |
20Gb/s |
20Gb/s |
| QPI |
- |
- |
| Memory |
Technology |
DDR3 1600 MHz |
DDR3 1600 MHz |
| Capacity |
Up to 96 GB (16 GB per DIMM) |
Up to 96 GB (16 GB per DIMM) |
| ECC Support |
Yes |
Yes |
| Socket |
6 x 240-pin DIMM |
6 x 240-pin DIMM |
| REG Support |
YES |
YES |
| Display |
Controller |
Aspeed AST1300/2300 |
Aspeed AST1300/2300 |
| Graphic Memory |
Onboard memory 64MB |
Onboard memory 64MB |
| Multiple Display |
- |
- |
| Display Interface |
VGA: Up to 1920 x 1200 |
VGA: Up to 1920 x 1200 |
| Expansion Interface |
PCI Express x 16 |
2 (Gen3) |
2 (Gen3) |
| PCI Express x 8 |
- |
- |
| PCI Express x 4 |
1 (Gen2) |
1 (Gen2) |
| PCI Express x 1 |
1 (Gen2) |
1 (Gen2) |
| PCI |
2 |
2 |
| LPC |
1 |
1 |
| SMBus |
1 |
1 |
| PME |
- |
- |
| Ethernet |
Controller |
LAN1: Intel 82579LM LAN2: Intel 82574L |
LAN1: Intel 82579LM LAN2: Intel 82574L |
| Speed |
10/100/1000 Mbps |
10/100/1000 Mbps |
| Connector |
2 x RJ45 |
2 x RJ45 |
| WatchDog Timer |
Output |
System Reset |
System Reset |
| Interval |
Programmable 1~255 sec |
Programmable 1~255 sec |
| I/O |
SATA |
4 x SATA II 2 x SATA III (From Intel C602J, support RAID 0, 1, 10, 5 for Windows) |
4 x SATA II 2 x SATA III (From Intel C602J, support RAID 0, 1, 10, 5 for Windows) |
| SAS Port |
- |
- |
| SAS controller |
- |
- |
| USB3.0 |
- |
- |
| USB2.0 |
8 |
8 |
| GPIO |
8-bit |
8-bit |
| LPT |
- |
- |
| COM Port |
1 x RS232 |
1 x RS232 |
| PS/2 Keyboard/Mouse |
- |
- |
| SPDIF |
- |
- |
| System Fan |
5 |
5 |

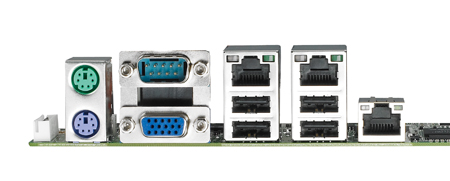

| Rear I/O Interface |
Display |
- |
- |
| LAN |
2 |
2 |
| USB3.0 |
- |
- |
| USB2.0 |
4 |
4 |
| COM |
1 x RS232 |
1 x RS232 |
| PS/2 |
2 (1 x Keyboard, 1 x Mouse) |
2 (1 x Keyboard, 1 x Mouse) |
| DVI |
- |
- |
| Ethernet |
2 |
2 |
| VGA |
1 |
1 |
| Power Requirement |
Voltage |
+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total |
+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total |
| Current |
35.06A/16.77A/24.75A/2A/0.1A/-/597.45W |
35.06A/16.77A/24.75A/2A/0.1A/-/597.45W |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature |
-40 ~ 85° C @ 95% RH Non-Condensing |
-40 ~ 85° C @ 95% RH Non-Condensing |
| Non-Operating Vibration |
3.5 Grms |
3.5 Grms |
| Physical Characteristics |
Dimensions (LxW) |
304.8 x 244 mm (12" x 9.6") |
304.8 x 244 mm (12" x 9.6") |
| Weight |
- |
- |
| Certification |
EMC |
CE, FCC |
CE, FCC |
| Management Solution |
Software |
- |
- |
| Out of band remote management |
- |
Realtek 8201EL |
