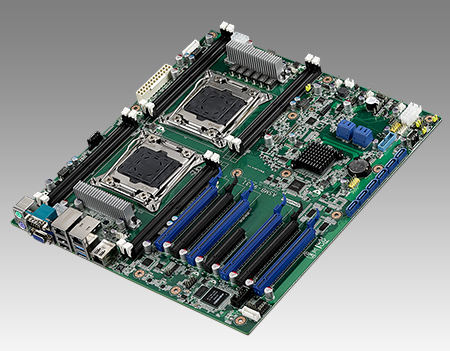

ASMB-923-00A1E |
ASMB-923I-00A1E |
| Form Factor |
Form Factor |
EATX |
EATX |
| Processor System |
CPU |
Intel Xeon E5-2600 v3 series (LGA2011-R3 socket) |
Intel Xeon E5-2600 v3 series (LGA2011-R3 socket) |
| CPU TDP |
Up to 160 W |
Up to 160 W |
| Frequency |
Up to 3.1 GHz |
Up to 3.1 GHz |
| Core Number |
Up to 14 |
Up to 14 |
| L3 Cache |
15-45 MB |
15-45 MB |
| BIOS |
AMI EFI 128 Mbit |
AMI EFI 128 Mbit |
| Chipset |
Intel C612 |
Intel C612 |
| Integrated Graphics |
- |
- |
| DMI |
20Gb/s |
20Gb/s |
| QPI |
9.6 GT/s |
9.6 GT/s |
| Memory |
Technology |
DDR4 2133 MHz |
DDR4 2133 MHz |
| Capacity |
Up to 256 GB |
Up to 256 GB |
| ECC Support |
Yes |
Yes |
| Socket |
8 x 288-pin DIMM |
8 x 288-pin DIMM |
| REG Support |
YES |
YES |
| Display |
Controller |
Aspeed AST1400/2400 |
Aspeed AST1400/2400 |
| Graphic Memory |
Onboard memory 64MB |
Onboard memory 64MB |
| Multiple Display |
- |
- |
| Display Interface |
VGA: Up to1920 x 1200 |
VGA: Up to1920 x 1200 |
| Expansion Interface |
PCI Express x 16 |
4 (Gen3) |
4 (Gen3) |
| PCI Express x 8 |
2 (Gen3) |
2 (Gen3) |
| PCI Express x 4 |
1 (Gen2) |
1 (Gen2) |
| PCI Express x 1 |
- |
- |
| PCI |
- |
- |
| LPC |
1 |
1 |
| SMBus |
1 |
1 |
| PME |
- |
- |
| Ethernet |
Controller |
LAN1: Intel I210; LAN2: Intel I210 |
LAN1: Intel I210; LAN2: Intel I210 |
| Speed |
10/100/1000 Mbps |
10/100/1000 Mbps |
| Connector |
2 x RJ45 |
2 x RJ45 |
| WatchDog Timer |
Output |
System Reset |
System Reset |
| Interval |
Programmable 1 ~ 255 sec/min |
Programmable 1 ~ 255 sec/min |
| I/O |
SATA |
10 x SATA3 (SATA0-SATA5 and sSATA0-sSATA3 Supports software RAID 0, 1, 10 & 5) |
10 x SATA3 (SATA0-SATA5 and sSATA0-sSATA3 Supports software RAID 0, 1, 10 & 5) |
| SAS Port |
- |
- |
| SAS controller |
- |
- |
| USB3.0 |
2 |
2 |
| USB2.0 |
5 |
5 |
| GPIO |
8-bit |
8-bit |
| LPT |
- |
- |
| COM Port |
1 x RS232 |
1 x RS232 |
| PS/2 Keyboard/Mouse |
- |
- |
| SPDIF |
- |
- |
| System Fan |
3 |
3 |
| Rear I/O Interface |
Display |
- |
- |
| LAN |
2 |
2 |
| USB3.0 |
2 |
2 |
| USB2.0 |
2 |
2 |
| COM |
1 x RS232 |
1 x RS232 |
| PS/2 |
1 |
1 |
| DVI |
- |
- |
| Ethernet |
2 |
2 |
| VGA |
1 |
1 |
| Power Requirement |
Voltage |
+12V/+5V/+3.3V/+5Vsb/-12V |
+12V/+5V/+3.3V/+5Vsb/-12V |
| Current |
17.42A/1.0A/1.69A/0.05A/0.01A |
17.42A/1.0A/1.69A/0.05A/0.01A |
| Environment |
Operational Temperature |
0 ~ 40° C (32 ~ 104° F) |
0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature |
-40 ~ 85° C (-40 ~ 185° F) |
-40 ~ 85° C (-40 ~ 185° F) |
| Non-Operating Vibration |
3.5 Grms |
3.5 Grms |
| Physical Characteristics |
Dimensions (LxW) |
304.8 x 330.2 mm (12" x 13") |
304.8 x 330.2 mm (12" x 13") |
| Weight |
- |
- |
| Certification |
EMC |
CE, FCC |
CE, FCC |
| Management Solution |
Software |
SUSIAccess 2.1 |
SUSIAccess 2.1 |
| Out of band remote management |
Realtek 8201EL |
Realtek 8201EL
|
