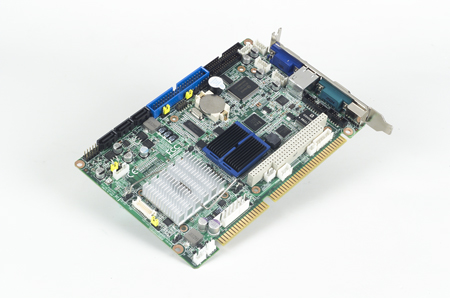

PCA-6782
Intel? Atom N455/D525, ISA半長卡,帶 VGA/LVDS/GbE LAN/SATA/COM /CFC/FDD/PC104
Main Features
  • Ultra low power, fanless N455 CPU and maximum 2 GB DDR2 667 memory (Only for N SKU)
  • Dual core high performance D525 CPU and maximum 2 GB DDR2 667/800 memory (Only for D SKU)
  • VGA/LVDS dual video outputs
  • Optional module for 4 x RS-485 w/auto-flow control
  • Supports embedded software APIs and utilities
     數據表(PDF)    技術資料下載
  規格表
　 PCA-6782D-S8A1E PCA-6782N-S6A1E
Form Factor Form Factor ISA half-size ISA half-size
Processor System CPU Intel Atom D525 Intel Atom N455
CPU TDP Up to 13 W Up to 6.5 W
Frequency Up to 1.8 GHz Up to 1.66 GHz
Core Number 2 1
L2 Cache 1 MB 512 KB
BIOS AMI 16 MBit AMI 16 MBit
Chipset Intel ICH8M Intel ICH8M
Integrated Graphics Yes Yes
Memory Technology DDR2 667/800 MHz DDR2 667 MHz
Capacity Up to 2 GB (2 GB per DIMM) Up to 2 GB (2 GB per DIMM)
Socket 1 x 200-pin SODIMM 1 x 200-pin SODIMM
Onboard Memory - -
Display Controller Intel Embedded Gen3.5+ GFX Core technology Integrated Intel Embedded Gen3.5+ GFX Core technology Integrated
Graphic Memory Share with system memory up to 224 MB Share with system memory up to 224 MB
Multiple Display Dual Dual
Display Interface VGA: Up to 2048 x 1563 LVDS: 18 bit, Up to 1366 x 768/ 1280 x 800 VGA: Up to 1400 x 1050 LVDS: 18 bit, Up to 1366 x 768/ 1280 x 800
Expansion Interface ISA 1 1
PC/104 - -
Ethernet Controller LAN1: Intel 82567V LAN1: Intel 82567V
Speed 10/100/1000 Mbps 10/100/1000 Mbps
Connector 1 x RJ45 1 x RJ45
WatchDog Timer Output System Reset/ Interrupt System Reset/ Interrupt
Interval Programmable 1~255 sec Programmable 1~255 sec
Storage CFast - -
CompactFlash - -
I/O SATA 3 x SATA II 3 x SATA II
Compact Flash 1 x Type I/II Socket 1 x Type I/II Socket
IDE 1 1
Floppy 1 1
USB2.0 8 8
GPIO 8-bit 8-bit
LPT 1 1
COM Port 1 (1 x RS232) 1 (1 x RS232)
PS/2 Keyboard/Mouse 1 1
IR - -
System Fan 1 1
Rear I/O Interface COM 1 1
PS/2 1 (for mouse and keyboard, a Y cable is included in the package) 1 (for mouse and keyboard, a Y cable is included in the package)
Ethernet 1 1
VGA 1 1
Power Requirement Voltage +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V/ Total
Current 0.46 A/2.41 A/0 A/0.01 A/0 A/0 A/ 17.62 W 0.13 A/2.19 A/0 A/0.01 A/0 A/0 A/ 12.56 W
Environment Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature -40~ 85° C and 60° C @ 95% RH Non-Condensing -40~ 85° C and 60° C @ 95% RH Non-Condensing
Physical Characteristics Dimensions (LxW) 185 x 122 mm (7.3" x 4.8") 185 x 122 mm (7.3" x 4.8")
Certification EMC CE, FCC CE, FCC
Management Solution Software SUSIAccess 2.0 SUSIAccess 2.0
