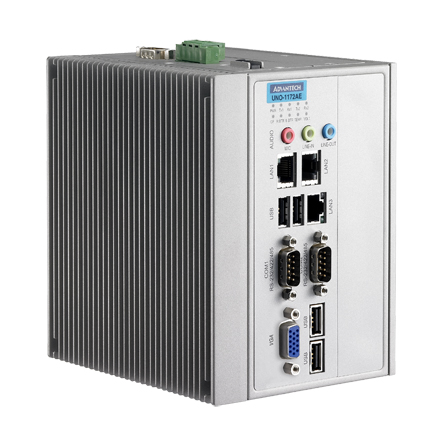

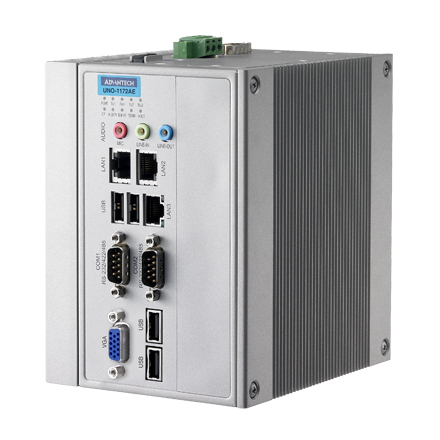

UNO-1172AE
Intel? Atom? D510 DIN-rail PCs with 3 x LAN, 2 x COM, VGA, Mini PCIe, PC/104+

Main Features

  • Onboard Intel Atom D510 1.66 GHz processor
  • Onboard 1 MB battery-backup SRAM
  • Onboard system & I/O LED indicators
  • System diagnosis through LED and digital output, remote power control through digital input
  • Two RS-232/422/485 ports with automatic flow control
  • Three 10/100/1000 Base-T RJ-45 ports with teaming function support
  • 4 x external USB
  • PC/104+ expansion slots option
  • 1 x Mini PCIe slot for WLAN card and Fieldbus card
  • Windows® 7, Windows CE, XP Embedded and Linux support
  • Supports Boot from LAN function
  • Fanless design with no internal cabling
  • Isolation between chassis and power ground
        數據表(PDF)     技術資料下載
  規格表
UNO-1172AE-A33E
General Power Consumption 24 W (Typical)
Mounting DIN-rail, Wallmount
Certifications CE, FCC class A, UL, CCC
Weight 2 kg
Dimensions 111 x 152 x 139 mm (4.4" x 6" x 5.5")
Enclosure Housing Aluminum + SECC
OS Support Windows WES 2009, Windows XP, Windows 7, Windows CE 5.0/6.0, Linux, QNX
Power Requirement 10 ~ 36 VDC (e.g +24 V @ 2 A) (Min. 48 W), AT
System Design Fanless with no internal cabling
Remote Management Built-in Advantech DiagAnywhere agent on Windows CE/XPe
System Hardware CPU Intel Atom D510 1.66 GHz
Memory 2 GB DDR2 SDRAM built-in
Storage SSD: 1 x internal type I/II CompactFlash slot, HDD: one 2.5" SATA HDD bracket
Keyboard/Mouse Ports 1 x PS/2
Audio 5.1 channel HD Audio, Mic in, Line in, Line out
Display DB15 VGA connector, 1600 x 1200 @ 85 Hz
Processor System Watchdog Timer Programmable 256 levels timer interval, from 1 to 255 sec
System Hardware Indicators LEDs for Power, IDE, LAN (Active, Status), Serial (Tx, Rx), Alarm for battery backup SRAM and diagnosis (programmable), Buzzer for Diagnosis (programmable)
Battery Backup Memory 4 MB
PC/104 Slot one PC/104+ HDD
Mini PCI 1 x Mini PCI
I/O Interface Serial Ports 2 x RS-232/422/485 with DB9 connectors,Automatic RS-485 data flow control, 2 x RS-232(optional, pin header)
LAN 3 x 10/100 Base-T RJ-45 ports (supports Wake on LAN, built-in boot ROM)
USB 4 x USB, EHCI, Rev. 2.0 compliant (1 is for USB dongle inside chassis)
Environment Temperature (Operating) -10 ~ 65° C (14 ~ 149° F)
Temperature (Storage) -20 ~ 80° C (-4 ~ 176° F)
Humidity (Operating) 20 ~ 95% (Non-condensing)
Ingress Protection IP40
Humidity (Storage) 0 ~ 95% (non-condensing)
