CPU board:MIC-3954
3U CompactPCI? Serial Peripheral Board with PCIe? Mini Card or Storage Function
Main Features
  • PICMG CPCI-S.0 CompactPCI® Serial
  • For card 2 with SATA interface
  • For card 1 with internal PCIe and USB interface
  規格表

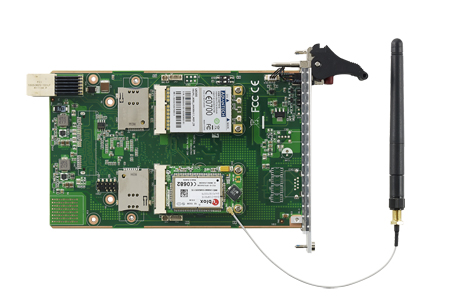

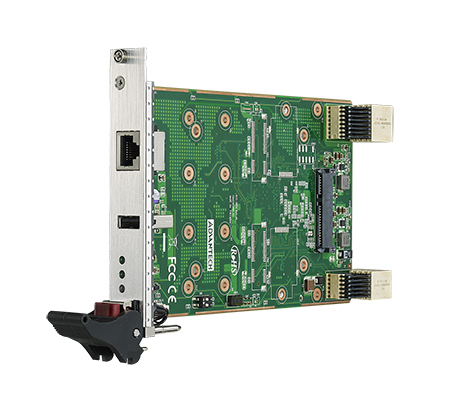

The MIC-3954 is a rugged single Eurocard CompactPCI® Serial carrier board with two function options; Option 1: Supports the PCI Express® Mini Card, which offers two standard PCI Express® Mini Card slots, with dual on-board SIM slots for 3G module. It allows to use all types of cards for HF applications, for example GPS, WLAN, UMTS, GSM, or HSDPA which is connected to two external SMA antenna connectors; Option 2: Supports the hard disk drive carrier board and one USB connector on front panel. It is designed to carry a 2.5" SATA hard disk drive or a solid state drive.
