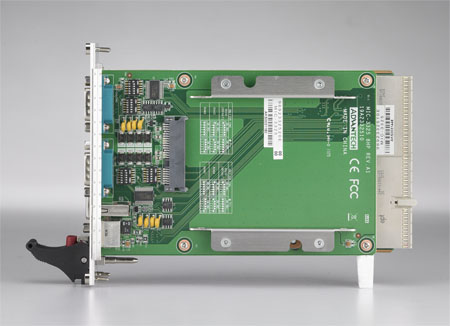

CPU board:MIC-3325
3U CompactPCI? Intel? AtomTM Dual Core D525/N455 Processor Blade
Main Features
  • Dual Core Intel® AtomTM D525 processor/single core N455 processor
  • Intel® I/O Controller Hub 8-Mobile (ICH8M)
  • Two GB DDR3 onboard up to 800 MT/s
  • Optimized CompactFlash socket on single board computer
  • 2.5" SATA-II HDD on XTM second layer
  • Two 10/100/1000 Mbps ports, two USB ports, one VGA port on front panel
  • Two COM ports, one USB ports, one PS/2 port on 8HP second layer
  • Support 5V only power input
  • PICMG 2.0, R 3.0, PICMG 2.1, R 2.0 compliant
     數據表(PDF)    技術資料下載
  規格表
　 MIC-3325D-D2E MIC-3325D-S2E MIC-3325N-D3E MIC-3325N-S2E MIC-3325XTM-S1E MIC-3525-S1E
Form Factor Form Factor 　 3U CPCI 3U CPCI 3U CPCI 3U CPCI 3U CPCI
I/O COM 2 2 2 2 2 2
LAN 2 2 2 2 2 2
Memory Max. Cap. 2 GB 2 GB 2 GB 2 GB 2 GB 2 GB
Processor System CPU Intel Atom D525 Dual Core 1.8 GHz Intel Atom D525 Dual Core 1.8 GHz Intel Atom D525 Dual Core 1.8 GHz Intel Atom D525 Dual Core 1.8 GHz Intel Atom D525 Dual Core 1.8 GHz Intel Atom D525 Dual Core 1.8 GHz
