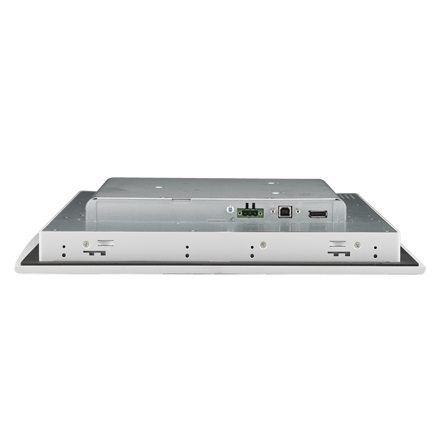

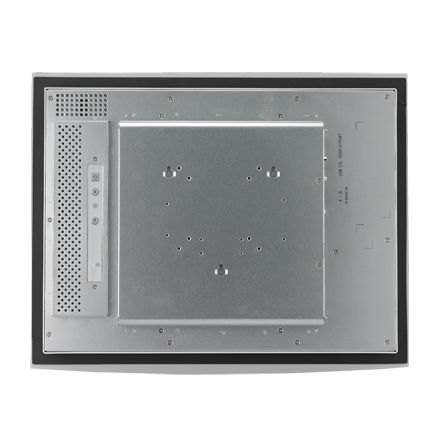

19寸：FPM-5192G
19" SXGA Industrial Monitors with Resistive Touchscreens, Lockable Display Port
Main Features
  • 19" SXGA TFT LCD LED backlight
  • Lockable display port input interface
  • Lockable OSD keys with 2 user-defined contrast/brightness settings
  • Flat-sealed front panel
  • Robust design with anti-rust chassis and aluminum die-cast front panel
  • Front accessible USB connector
  • USB interface for touchscreen function (optional)
  • Supports industrial 18-32VDC power input with Phoenix jack
  • Supports panel, wall, desktop, rack or VESA arm mounting
  • Front panel is IP65 compliant
     數據表(PDF)    技術資料下載
  規格表
FPM-5192G-R2AE
Display Display Size 19"
Display Type 19" SXGA
Max. Colors 16.7 M
Max. Resolution 1280 x 1024
Backlight MTBF(hrs) 50,000
Luminance (cd/m2) 350
Viewing Angle (H/V°) 170/160
General Dimensions 481.93 x 384.6 x 59 mm
Power Input Voltage 18-32v
Video Port Lockable display port
Weight (Net) 10kg
Operating System Windows XP, Vista, 7,8, XPe, CE and Linux
OSD(onscreen display) On rear side
Environment Operating Temperature 0 ~ 50°C (32 ~ 122°F)
Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
Touchscreen (Optional) Touch Operation System PenMount 6000
Touchscreen USB
