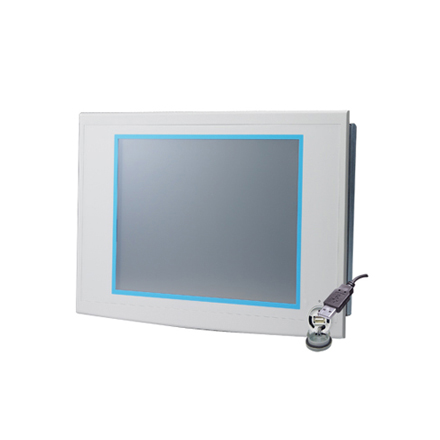

IPPC-6152A-R1BE |
IPPC-6152A-R2AE |
| Display |
Backlight Life (hrs) |
50,000 hrs |
50,000 hrs |
| Contrast Ratio |
700:01:00 |
700:01:00 |
| Luminance (cd/m2) |
250 |
400 |
| Max. Colors |
16.2 M (RGB 6-bit + FRC data) |
16.2M/262K |
| Max. Resolution |
1024 x 768 |
1024 x 768 |
| Size |
15" |
15" |
| Type |
XGA TFT LCD LED Backlight |
XGA TFT LCD LED Backlight |
| Viewing Angle (H/V°) |
160/140 |
160/140 |
| Environment |
Humidity (Operating) |
5 ~ 85% @ 40°C (non-condensing) |
5 ~ 85% @ 40°C (non-condensing) |
| Ingress Protection |
Front panel: IP65 |
Front panel: IP65 |
| Temperature (Operating) |
0 ~ 50° C (32 ~ 122° F) |
0 ~ 50° C (32 ~ 122° F) |
| Temperature (Storage) |
-20 ~ 60° C (-4 ~ 140° F) |
-20 ~ 60° C (-4 ~ 140° F) |
| Vibration Protection |
5 ~ 500 Hz, 1 GRMS random vibration |
5 ~ 500 Hz, 1 GRMS random vibration |
| General |
BIOS |
AMI 4 MB Flash BIOS |
AMI 64 MB Flash BIOS |
| Certifications |
UL, CE, FCC, CCC, BSMI |
UL, CE, FCC, CCC, BSMI |
| Dimensions |
449.92 x 315.63 x 142.7 mm (17.71" x 12.43" x 5.62") |
449.92 x 315.63 x 126.4 mm (17.71" x 12.43" x 4.98") |
| Mounting |

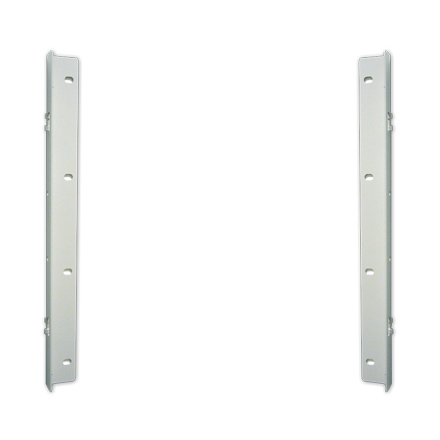

Panel, Rack (option) |
Panel, Rack (option) |
| OS Support |
Windows 7, Windows XP |
Microsoft Windows 7, Windows 8 |
| Power Input |
100 ~ 240 VAC @ 60 ~ 50 Hz, 7 ~ 3.5 A |
100 ~ 240 VAC @ 60 ~ 50 Hz, 7 ~ 3.5 A |
| Power Supply |
350W |
350 W |
| Weight (Gross) |
13Kg (28.6lbs) |
- |
| System Hardware |
Chipset |
Intel Q45 GMCH/ICH10D0 |
Intel Q87 |
| CPU |
Supports Socket LGA775 based up to Intel Core 2 Quad 2.8 GHz/Core 2 Duo 3.0 GHz |
Supports Intel® Core™ i7/i5/i3 processor (up to 3.1GHz ) |
| Expansion Slots |
2 x half-length PCI slots installed. (Replaceable with a1 x two slot PCIEx1 riser accessory) |
2 x half-length PCI Slot installed.(1x two slot PCIE x1 riser optional) |
| LAN |
10/100/1000Base-T Ethernet x 2 |
10/100/1000Base-T Ethernet x 2 |
| Memory |
Two DDR3 240pin slots up to 4GB 1066/1333 MHz SDRAM |
System supports four DIMM sockets support up to 32GB DDR3 1333/1600 MHz SDRAM |
| Optical Driver |
1 x Slim Type DVD-RW |
1 x Slim Type DVD-RW (optional), CFast (optional) |
| Storage |
Supports 2 x 2.5" SATA HDD Interface and Intel Matrix Storage Technology RAID 0/1 |
Supports 2 x 2.5“ SATA 2.0 or SATA 3.0 HDDs and RAID 0,1 compatibility |
| Touchscreen |
Lifespan |
36 million with a silicone rubber of R8 finger, writing rate is by 250g at 2 times/s |
36 million with a silicone rubber of R8 finger, writing rate is by 250g at 2 times/s |
| Touch Type |
Analog Resistive 5-wire |
Analog Resistive 5-wire |
| Light Transmission |
> 80% |
> 80% |
