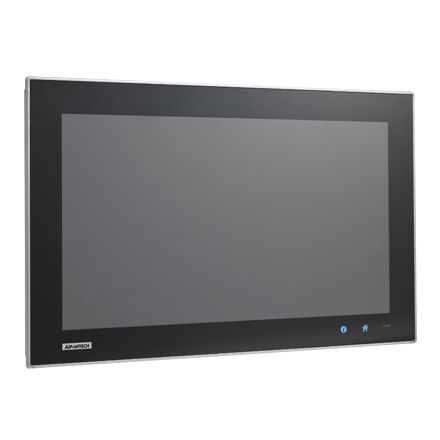

| TPC-2140WP |
| 21.5" Full HD TFT LCD Touch Panel Computer with AMD Dual-core processor |
|
|
| Environment |
Humidity (Operating) |
10 ~ 95% RH @ 40°C, non-condensing (Note: Tested for 48hrs) |
| Ingress Protection |
Front panel: IP66 |
| Operating Temperature |
0 ~ 55°C (32 ~ 131°F) |
| Storage Temperature |
-20 ~ 60°C (-4 ~ 140°F) |
| Vibration Protection |
With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) |
| General |
Enclosure Housing |
Front bezel: Die-cast Aluminum alloy, Back housing: PC/ABS Resin |
| Mounting |
Panel Mount |
| OS Support |
Microsoft® Win8/WES7P/XP/WES2009/Linux |
| Power Consumption |
35 W (typical) |
| Power Input |
18 ~ 32 VDC |
| Watchdog Timer |
1 ~ 255 sec (system) |
| Weight (Net) |
8.5 kg (18.7 lbs) |
| LCD Display |
Backlight Life |
50,000 hrs |
| Display |
Size |
21.5" |
| LCD Display |
Display Type |
Full HD TFT LED LCD |
| Luminance (cd/m2) |
300 |
| Max. Colors |
16.7M |
| Max. Resolution |
1920 x 1080 |
| Viewing Angle (H/V°) |
178/178 |
| System Hardware |
Chipset |
AMD A50M FCH |
| CPU |
AMD G-series T56E 1.65GHz |
| Expansion Slots |
Full-sized Mini PCI-E x 1 |
| I/O |
RS-232 x 3, RS-422 / 485 x 1, USB 2.0 x 2(Host), HDMI x 1, Mic in x 1, Line out x 1 |
| LAN |
10/100/1000Base-T x 2 |
| Memory |
4GB SO-DIMM DDR3 SDRAM |
| Storage |
CompactFlash® slot x 1, 2.5" SATA HDD x 1(optional) |
| Touchscreen |
Light Transmission |
≥88% |
| Resolution |
4096 x 4096 dot |
| Touch Type |
Projected capacitive |
| General |
BIOS |
AMI 32Mbit |
| Certifications |
BSMI, CCC, CE, FCC Class A, UL |
| Cooling System |
Fanless design |
| Dimensions |
558.4 x 349.8 x 56.7 (21.98" x 13.77" x 2.23") |
|
