| General |
Certifications |
BSMI, CCC, CE, FCC Class A, UL |
| Cooling System |
Fanless design |
| Dimensions (W x H x D) |
558.4 x 349.8 x 65 mm (21.98” x 13.77” x 2.56”) |
| Enclosure |
Front bezel: Die-cast Aluminium alloy, Back housing: Die-cast Aluminium alloy |
| Mounting |
VESA Arm |
| OS Support |
Microsoft® Win7/8/WES7P/XP/WES2009/Linux |
| Power Consumption |
35 W (typical) |
| Power Input |
24 VDC |
| Weight (Net) |
9 kg (19.8 lbs) |
| System Hardware |
Chipset |
AMD A50M FCH |
| CPU |
AMD G-series T56N 1.6GHz |
| LAN |
10/100/1000Base-T x 2 (connection:M12 A-coded, 8-pin female) |
| Memory |
4GB SO-DIMM DDR3 SDRAM |
| Expansion Slots |
Full-sized Mini PCIe slot x 1 (optional) |
| Storage |
2.5" SATA HDD bracket x 1 |
| I/O |

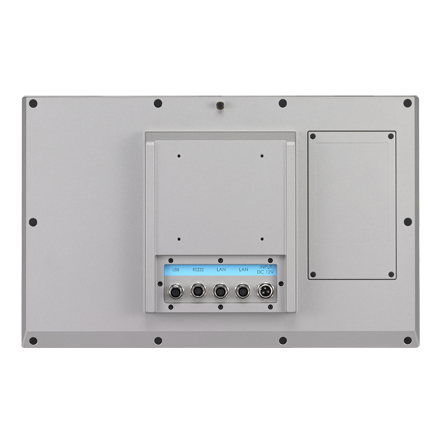

RS-232 x1 (connection:M12 A-coded, 8-pin male), USB 2.0 x1 (connection:M12 A-coded, 8-pin female), 24 VDC power input (connection:M12 A-coded, 5-pin male) |
| Environment |
Humidity |
10 ~ 95% RH @ 40°C, non-condensing |
| Note: Tested for 48hrs |
| Ingress Protection |
All around IP65 |
| Operating Temperature |
0 ~ 55°C (32 ~ 131°F) |
| Storage Temperature |
-20 ~ 60°C (-4 ~ 140°F) |
| Vibration Protection |
With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) |
| LCD Display |
Backlight Life |
50,000 hrs |
| Display Size |
21.5" |
| Display Type |
Full HD TFT LED LCD |
| Luminance (cd/m2) |
300 |
| Max. Colors |
16.7M |
| Max. Resolution |
1920 x 1080 |
| Viewing Angle (H/V°) |
178/178 |
| Touchscreen |
Light Transmission |
≥88% |
| Resolution |
4096 x 4096 dot |
| Type |
Projected capacitive |
