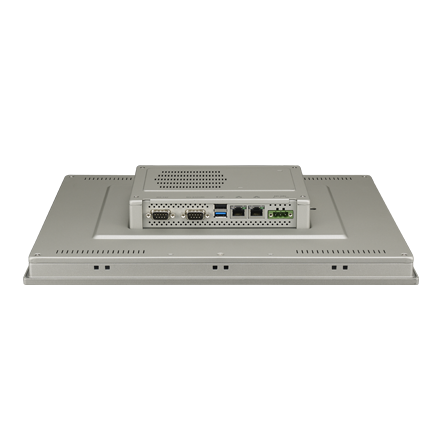

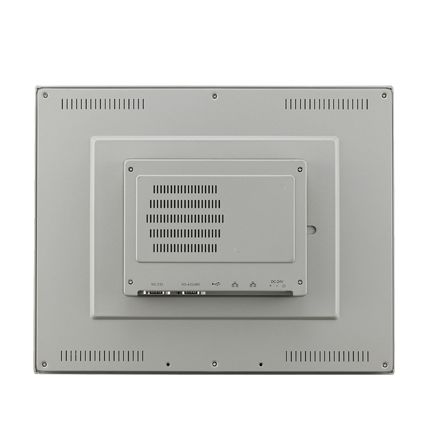

| TPC-1551T-E3AE |
| Environment |
Humidity |
10 ~ 95% RH @ 40°C, non-condensing |
| Ingress Protection |
Front panel: IP66 |
| Operating Temperature |
-20 ~ 60°C (-4 ~ 140°F) |
| Storage Temperature |
-30 ~ 70°C (-22 ~ 158°F) |
| Vibration Protection |
With CFast: 2 Grms (5~500 Hz), With HDD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration) |
| General |
Power Consumption |
18 W (Typical) |
| Power Input |
24VDC +/- 20% |
| Watchdog Timer |
1 ~ 255 sec (system) |
| Weight (Net) |
3.9 KG |
| LCD Display |
Backlight Life |
50,000 hrs |
| Contrast Ratio |
700:01:00 |
| Display Size |
15" |
| Display Type |
XGA TFT LED LCD |
| Luminance (cd/m2) |
400 |
| Max. Colors |
16.7M |
| Max. Resolution |
1024 x 768 |
| Viewing Angle (H/V°) |
160/140 |
| System Hardware |
CPU |
Intel® Atom™ E3827 1.75 GHz Processor |
| Expansion Slots |
Full-size Mini PCI-E |
| I/O |
RS-232 x 1, RS-232/422/485 x 1, USB3.0 x 1, USB2.0 x 1 |
| LAN |
10/100/1000Base-T x 2 |
| Memory |
4GB (8GB optional) DDR3L 1600MHz SO-DIMM |
| Storage |
CFast slot x 1, 2.5" SATA HDD x 1(optional) |
| Touchscreen |
Lifespan |
10 million touches at single point |
| Light Transmission |
Above 75% |
| Resolution |
Linearity |
| Type |
5-wire, analog resistive |
| General |
OS Support |
Microsoft® Windows WES7 32bit/64bit /WES8 64bit / Windows 7 32bit/64bit / Windows 8 64bit/Linux Kernel 3.x |
| Mounting |
Desktop, Wall or Panel Mount |
| BIOS |
AMI UEFI |
| Enclosure |
Front bezel: Die-cast Aluminum alloy, Back housing: SECC |
| Certifications |
BSMI, CCC, CE, FCC Class A, UL |
| Cooling System |
Fanless design |
| Dimensions ( W x D x H ) |
383.20 x 307.30 x 61.10 mm (15.09" x 12.10" x 2.41") |
