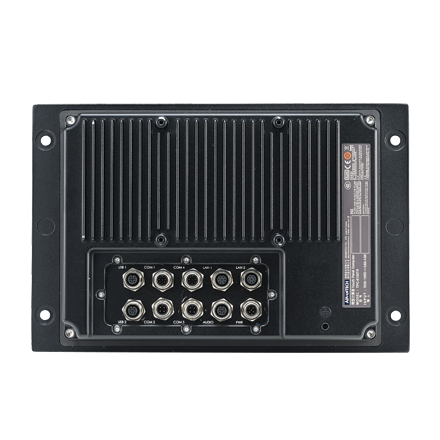

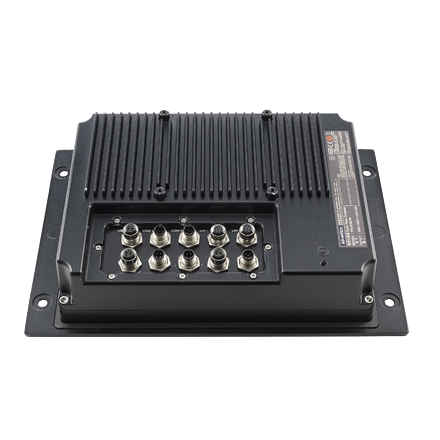

TPC-8100TR
10.4" EN50155 Railway Panel Computer
Main Features
  • 10.4" SVGA 800x600 with 400 nits LED LCD display
  • Fanless with Dual core 1.6 GHz processor
  • 5H Hardness resistive touch
  • Alternative keypad control in front bezel
  • Mother board / Daughter board with coating for weather proof
  • All around IP65 with waterproof M12 connector
  • Optical bonding for weather proofing
  • Ruggedized enclosure with Die-cast Aluminium alloy
  • Wide operating temperature: -30 ~ 70°C
  • EN50155 Compliance for railway application
  規格表
TPC-8100TR-N3AE
Environment Humidity 10 ~ 95% RH @ 40°C, non-condensing
Humidity (Storage) -30 ~ 70°C (-22 ~ 158°F)
Ingress Protection All around IP65
Temperature (Operating) -30 ~ 70°C (-22 ~ 158°F)
Vibration Protection IEC 61373 Railway– Shock and Vibration
General Certifications CE,FCC,CCC,EN50155 Compliance
Cooling System Fanless design
Dimensions (W x H x D) 345x227x85mm (13.6"x8.9"x3.4")
Enclosure Front bezel: Die-cast Aluminium alloy, Back housing: Die-cast Aluminium alloy
Mounting Panel Mount / VESA Mount
OS Support WES 7 & 8/ WES 2009 / Windows CE 7.0 / Linux
Power Consumption 35 W Typical
Power Input 110 VDC
Weight (Net) 5 kg (11 lbs)
LCD Display Backlight Life 50,000 hrs
Contrast Ratio 700:01:00
Display Size 10.4"
Display Type SXGA TFT LED LCD
Max. Colors 262 K
Max. Resolution 800 x 600
Viewing Angle (H/V°) 160/140
System Hardware Chipset Intel Atom N2600
CPU Intel Cedar Trail Dual core processor 1.6G
Memory 4GB SO-DIMM DDR3 SDRAM
Storage Built in 16G CFast card
