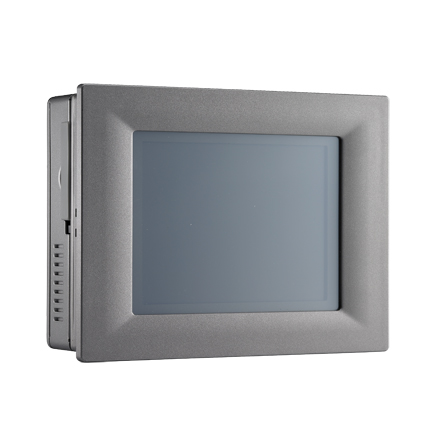

| TPC-651H-Z2AE |
| Display |
Type |
VGA TFT LED LCD |
| Viewing Angle (H/V°) |
160/140 |
| Backlight Life (hrs) |
50,000 hrs |
| Luminance (cd/m2) |
700 |
| Size |
5.7" |
| Max. Resolution |
640 x 480 |
| Max. Colors |
262 K |
| Contrast Ratio |
800:01:00 |
| General |
Power Consumption |
17 W (typical) |
| Power Input |
18 ~ 32 VDC |
| Watchdog Timer |
1 ~ 255 sec (system) |
| Mounting |
Desktop, Wall or Panel Mount |
| Certifications |
CE, BSMI, CCC, UL, FCC Class A |
| Dimensions |
195 x 148 x 58 mm (7.68" x 5.83" x 2.28") |
| BIOS |
Award® 4 Mbit |
| Cooling System |
Fanless design |
| Enclosure Housing |
Front bezel: PC/ABS Resin |
| OS Support |
Microsoft® Windows® 7/XPE/WESWindows CE 5.0/6.0 |
| Weight (Net) |
1.43 kg (3.15 lbs) |
| System Hardware |
CPU |
Intel® Atom™ 1.33 GHz |
| Memory |
1GB SO-DIMM DDR2 667 SDRAM, Up to 2GB (One channel) |
| Storage |
CompactFlash® slot x 1 |
| Chipset |
eMenlow XL + Poulsbo |
| LAN |
10/100/1000Base-T x 2 |

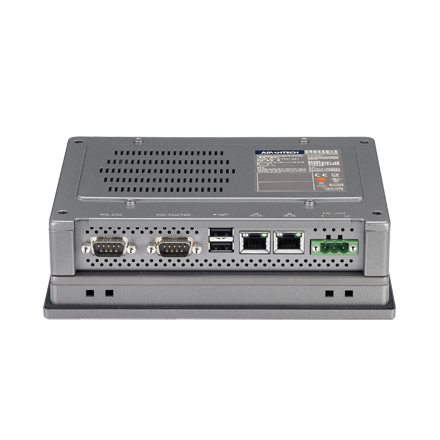

| I/O |
RS-232 x 1 (with isolation), RS-422/485 x 1 (with isolation), USB 2.0 x 2 (Host) |
| Environment |
Temperature (Operating) |
-20 ~ 60° C (-4 ~ 140° F) |
| Temperature (Storage) |
-30 ~ 80° C (-22 ~ 176° F) |
| Humidity (Operating) |
10 ~ 95% RH @ 40° C, non-condensing |
| Ingress Protection |
Front panel: IP65 |
| Vibration Protection |
2 Grms (5 ~ 500 Hz) |
| Touchscreen |
Lifespan |
10 million touches at single point |
| Light Transmission |
Above 75% |
| Resolution |
Linearity |
| Touch Type |
5-wire, analog resistive |
