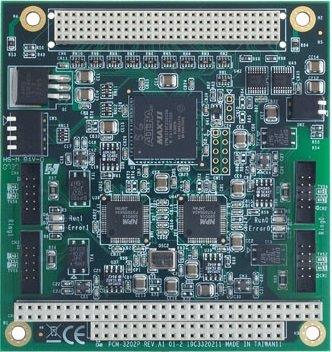

PCM-3202P
2-port AMONet RS-485 PC/104+ Master Card
Main Features
  • Max. 20 Mbps transfer rate
  • 2 independent AMONet RS-485 Master Rings
  • Max. 64 AMONet RS-485 slave modules supported per ring
  • Supports a communication distance of up to 100m@10Mbps
  • Programmable digital input for event notification events
  規格表
PCM-3202P-AE
General Power Consumption 5 VDC @ 0.5 A typical
Connector 4 x 10-pin box header
Temperature (Operating) 0 ~ 60°C (32 ~ 140°F)
Humidity 5 ~ 95% RH, non-condensing (IEC 68-2-3)
Temperature (Storage) -20 ~ 85°C (-4 ~ 185°F)
Bus PC/104+
Certifications CE, FCC class A
Dimensions 96 x 90 mm (3.8" x 3.5")
AMONet RS-485 Motion Control AMONet RS-485 2 rings
Interface Half duplex RS-485
Cable Type CAT5 UTP/STP Ethernet cable
Surge Protection 10 kV
Transmission Speeds 2.5, 5, 10, and 20 Mbps
Data Flow Control Automatic
Communication Distance (Max.) 100 m @ 20 Mbps w/32 slave modules
Slave Module Digital I/O, Motion Control, Analog I/O
