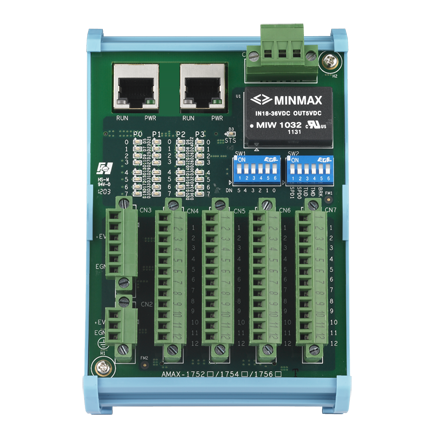

| AMAX-1754 |
| 基板式32路隔離數(shù)字量輸出AMONet從站模塊 |
| AMAX-1754-AE |
| General |
Bus |
AMONet RS-485 |
| Certifications |
CE, FCC class A |
| Dimensions |
141 x 95 x 60 mm |
| Humidity |
5 ~ 95% RH, non-condensing (IEC 68-2-3) |
| Temperature (Operating) |
0 ~ 60°C (32 ~ 140°F) |
| Power Consumption |
600mW typical, 2 W max. |
| Power Input |
24 VDC within 200 mA ripple |
| Power Supply |
10 ~ 30 VDC (2A max) |
| Isolated Digital Input |
Input Impedance |
3.2kO |
| Input Type |
Dry contact |
| Isolation Protection |
2,500 VRMS |
| Opto-Isolator Response |
100 µs (Max) |
| Isolated Digital Output |
Channels |
32 |
| Isolation Protection |
2,500 VRMS |
| Output Type |
Sink (NPN) (open collector Darlington transistors) |
| Output Voltage |
10 ~ 30 VDC |
| Sink Current |
1 ch: 500 mA (1 port) |
|
