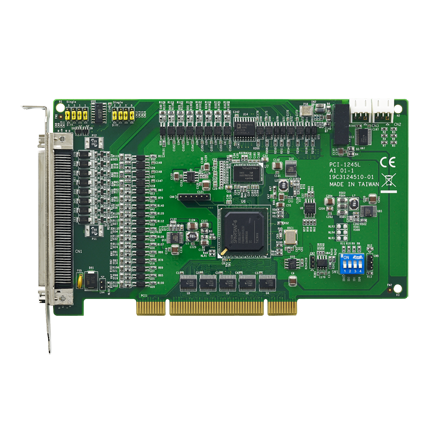

| PCI-1245L |
| 四軸PCI接口FPGA架構(gòu)入門版脈沖運(yùn)動(dòng)控制卡 |
| PCI-1245L-AE |
| Encoder Interface |
Counts per Enc. Cycle |
x1, x2, x4 (A/B phase only) |
| Input Range |
5 ~ 10 V |
| Input Type |
Quadrature (A/B phase) or up/down |
| Isolation Protection |
2,500 VDC |
| Max. Input Frequency |
4 MHz under 4xAB mode |
| General |
Bus Type |
Universal PCI V2.2 |
| Connector |
1 x 100-pin SCSI Female Connector |
| Dimensions (L x H) |
175 x 100 mm (6.9" x 3.9") |
| Humidity |
5 ~ 95% RH, non-condensing (IEC 60068-2-3) |
| Power Consumption |
Typical: 5 V @ 0.6 A, Max.: 5 V @ 1 A |
| Temperature (Operating) |
0 ~ 60°C (32 ~ 140° F) |
| Temperature (Storage) |
-20 ~ 85°C (-4 ~ 185°F) |
| Pulse Type Motion Control |
Interpolation |
2-axis linear interpolation |
| Max. Output Speed |
1 Mbps |
| Motor Driver Support |
Pulse-type servo/stepping |
| Number of Axis |
4 |
| Position Counters |
Range of command and actual position |
| Pulse Output Type |
Pulse/direction (1-pulse, 1-direction type) , CW/CCW |
| Step Count Range |
±2, 147, 483, 646 |
| Velocity Profiles |
T-Curve, S-Curve |
|
