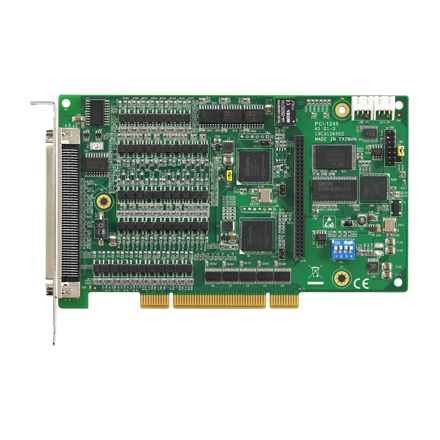

| PCI-1245-AE |
| General |
Power Consumption |
Typical: 5 V @ 850 mA; Max.: 5 V @ 1 A |
| Connector |
1 x 100-pin SCSI Female Connector |
| Temperature (Operating) |
0 ~ 60°C (32 ~ 140°F) |
| Humidity |
5 ~ 95% RH, non-condensing (IEC 68-2-3) |
| Temperature (Storage) |
-20 ~ 85°C (-4 ~ 185°F) |
| Bus |
Universal PCI V2.2 |
| Dimensions |
175 x 100 (6.9" x 3.9") |
| Encoder Interface |
Isolation Protection |
2,500 VDC |
| Input Type |
Quadrature (A/B phase) or up/down |
| Input Range |
5 ~ 15 V |
| Max. Input Frequency |
10 MHz under 4xAB mode |
| Axes |
Linear Interpolation |
V |
| 2-axis Circle |
V |
| Interpolation |
| Number of Axes |
4 |
| Advanced Function |
Servo On Output Channels |
4 |
| Advanced Functions |
General Purpose |
16 |
| DO Channels |
| General Purpose |
16 |
| DI Channels |
| Pulse Type Motion Control |
Motor Driver Support |
Servo/stepping |
| Interpolation |
2 to 4-axis linear, 2-axis circular, X-Y plane with Z thread helical interpolation |
