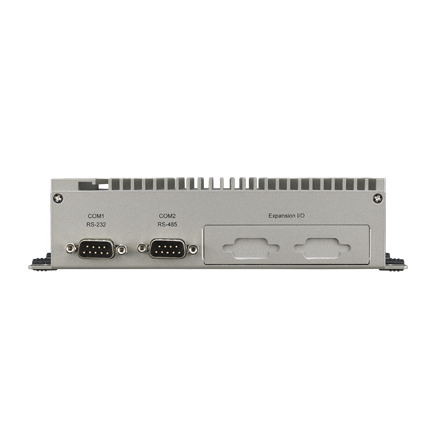

| UNO-2362G |
| AMD? Dual Core T40E Small-Size Automation Computer w/ 1 x GbE, 1 x mPCIe, HDMI/DP |
|
|
| Environment |
Ingress Protection |
IP40 |
| Operating Temperature |
-10 ~ 60°C (14 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow |
| Relative Humidity |
10 ~ 95% @ 40°C non-condensing |
| Shock Protection |
Operating, IEC 60068-2-27, 50G, half sine, 11ms |
| Storage Temperature |
-40 ~ 85°C (-40 ~ 185°F) |
| Vibration Protection |
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA), Operating, IEC 60068-2-64, 0.75Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) |
| General |
Certifications |
CE, UL, CCC, FCC, BSMI |
| OS Support |
Microsoft® Windows XP/7/8 WES7 Linux Fedora |
| Dimensions (W x H x D) |
190 x 107 x 47 mm (7.5" x 4.2" x 1.8") |
| Enclosure |
Aluminum Housing |
| Form factor |
Small Size |
| Mounting |
Stand, Wall, VESA (Optional) |
| Power Consumption |
14W (Typical), 24W(Max) |
| Power Requirement |
24VDC ±15% |
| Weight (Net) |
1.0kg (2.2lbs) |
| I/O Interface |
Displays |
1x DisplayPort 1.1, supports 1920x1200 (HD 6250) @30 bpp |
| Grounding Protection |
Chassis Grounding |
| LAN |
2x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet |
| Power Connector |
1x 2 Pins, Terminal Block |
| Serial Ports |
1x RS-232, DB9, 50~115.2kbps, 1x RS-485, DB9, auto flow control, 50~115.2kbps |
| USB Port |
4x USB 2.0 Compliant |
| System Hardware |
BIOS |
AMI UEFI 32Mbit Flash BIOS |
| Ethernet |
Realtek RTL8111E, Marvell 88E6172 Giga Ethernet switch with daisy chain technology |
| Expansion |
1 x Full-size mPCIe slot, mPCIe 2.0 (supports SIM card) |
| Graphics Engine |
AMD Radeon™ HD 6250 DirectX® 11 graphics with UVD 3.0 2D/3D Accelerator |
| LED Indicators |
LEDs for Power, battery, LAN (Active, Status) and HDD, 1 x mSATA |
| Memory |
On-board 2GB DDR3 833/1066 MHz |
| Processor |
AMD® G-series T40E 1.0GHz dual core, 512MB |
| Storage |
One drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD) Note: iDoor technology isn't compatible with HDD storage. CFast drive by iDoor Technology (Optional) |
| System Chip |
AMD® A50M FCH |
| Watchdog Timer |
Programmable 256 levels timer interval, from 1 to 255 sec |
|
